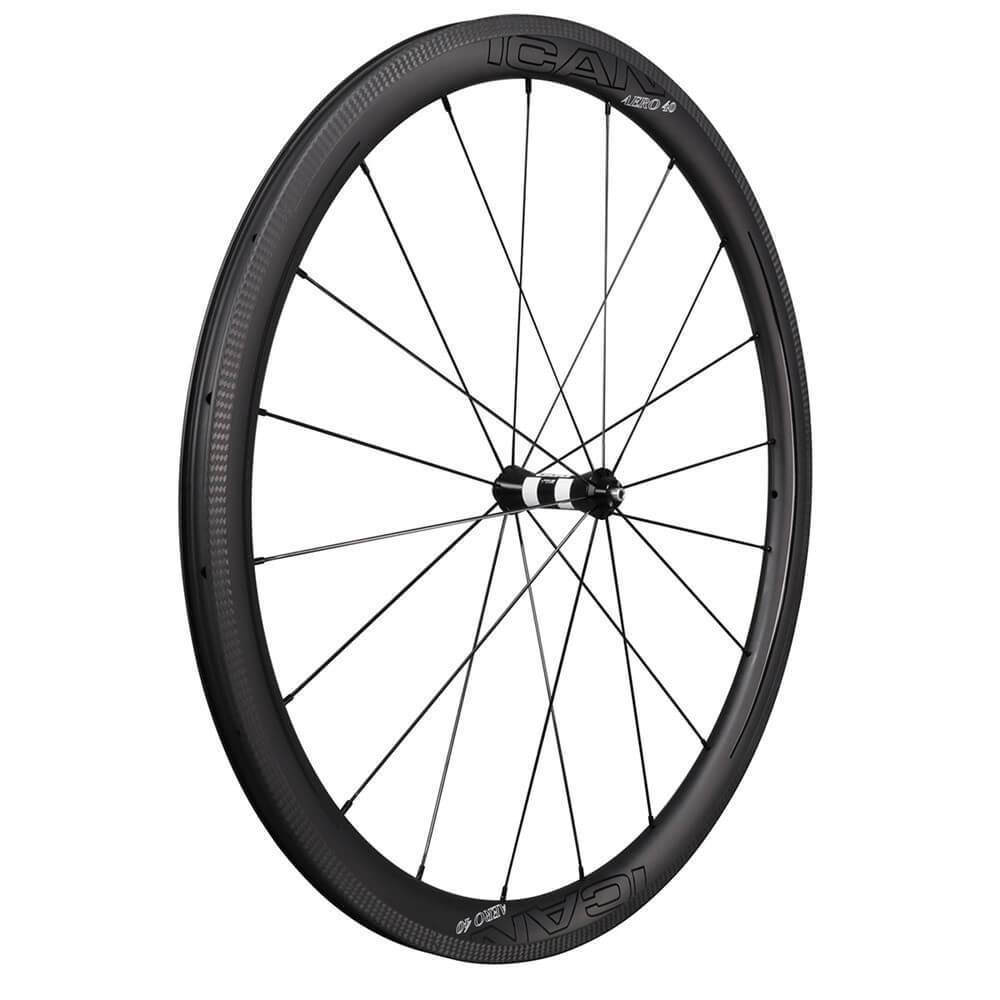

DT AERO 40
- Clincher tubeless ready
- 18.35mm internal rim width, 25mm external width
- Branded DT hubs
- Sapim CX-Ray spokes
- Sapim Secure Lock nipples
- Quick release 9x100/9x130mm
- 1429+-20g
- €1.018,95
- €1.018,95
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Fast Delivery
15-Year Quality Assurance
2-year Warranty
40mm deep carbon fiber wheels are a great choice if you live somewhere windy or like climbing mountains but still want a set of aero wheels. Our Aero 40 wheels with DT Swiss hubs are an even better choice. With our excellent carbon fiber layup matching the fine manufacturing of DT Swiss hubs.

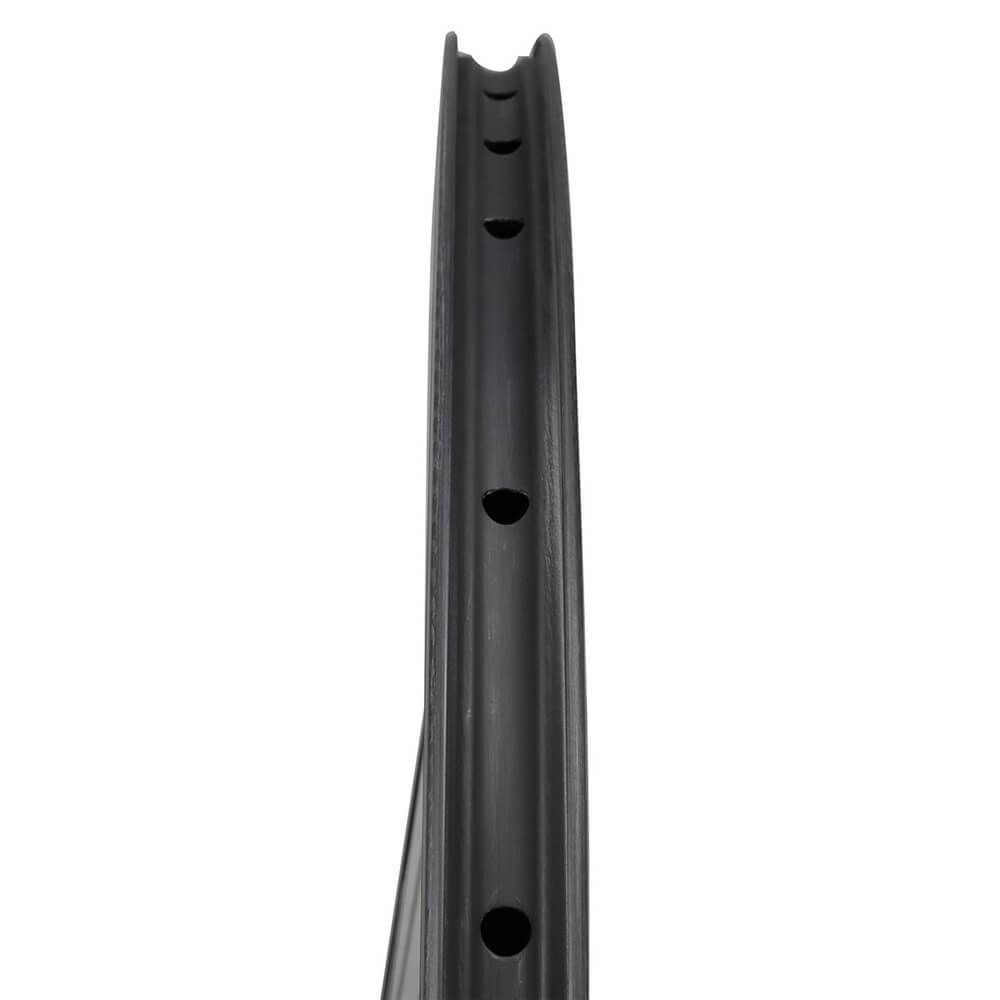

Our Aero rims feature a mix of Toray T700 and T800 carbon fiber. By missing the two types of carbon cloth, we now have a set of wheels that weigh around 100g less.
We have still though managed to keep the wheels strong and stiff, we have also used the same modern wide tubeless ready aero shape. Our wheel rims work with your tires to help stop the air breaking up around them. We have even managed to increase heat tolerance in our brake tracks, taking our wheels up to being tolerant of 300° from 240°.
We then use Sapim CX-Ray spokes to lace your choice of DT Swiss hub to our carbon fiber rim. The aero Sapim CX-Ray spokes are the perfect spokes to use with our Aero rim. As like our rim they are light and strong, exactly what you want.
Finally, you can pick from either a DT Swiss 350S or 240S hubset. Both come with featuring the famous DT Swiss build quality and almost instant drive. The only real difference is the 350S is more affordable, and the 240S is lighter.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
Sapim Secure Lock Nipples
Sapim Secure Lock nipple is a locking mechanism that prevents nipples from untightening.Secure Lock nipple can achieve a stable and well defi ned deformation on the thread. Each nipple has an additional locking resistance of 18 +/- 3 cNm.
UCI Approved
This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.
Specification
| Type | Carbon Racing Bike Wheelset |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim |
Finish: UD Matt Internal: 18.35mm |
| Depth | 40mm |
| Profile | Clincher Tubeless Ready |
| Hub | DT240EXP/350SL Hubs |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 20 Rear: 24 |
| Spoke Pattern | Front: Radial Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 11speeds |
| Wheelset Weight |
Total: 1429+-20g (DT 350SL) Front: 625+-10g Rear: 804+-10g |
| Brake Surface | 3K Twill |
| Recommended Tyre Size | 700 x 25-28mm |
| Rider Weight Limit | 232lbs/105kg |
| Guarantee | 2 years |
| Free |
1 set of skewer Carbon brakes pads |
| Packing Size | 81.5cm x 17cm x 65.5cm |
| Purchase Notes | Please do use black rubber if using tubeless tyre. Tight the valve before pumping. |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
| STANDARD CLINCHER TIRE WITH INNER TUBE | TUBELESS TIRES | |
|---|---|---|
| ≤ 65 KG RIDER | 23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
| 65 - 75 KG RIDER | 23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
| 75 - 85 KG RIDER | 23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
| 85 - 95 KG RIDER | 23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
