AERO 50 Disc

  • Clincher tubeless ready
  • 18.35mm internal rim width, 25mm external width
  • Sapim CX-Ray spokes
  • Sapim Secure Lock nipples
  • Recommended Tire Size: 25mm – 28mm
€679,95
€679,95
Hubs: ICAN D01
Disc Type: Centerlock
Driver Body Type: Shimano 11.12S/Sram 10.11S
Subtotal: €679,95
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

AERO 50 Disc - ICAN Wheels

AERO 50 Disc

€679,95

AERO 50 Disc

€679,95
Hubs: ICAN D01
Disc Type: Centerlock
Driver Body Type: Shimano 11.12S/Sram 10.11S

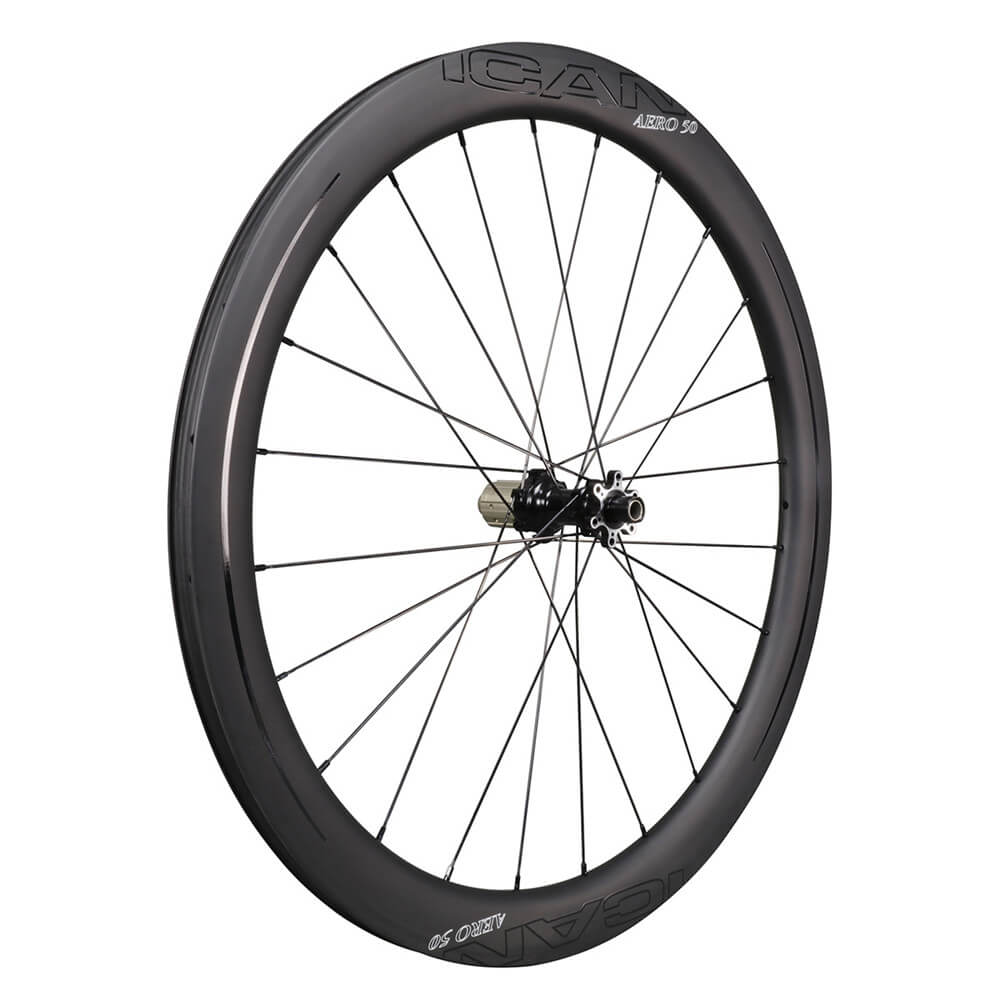

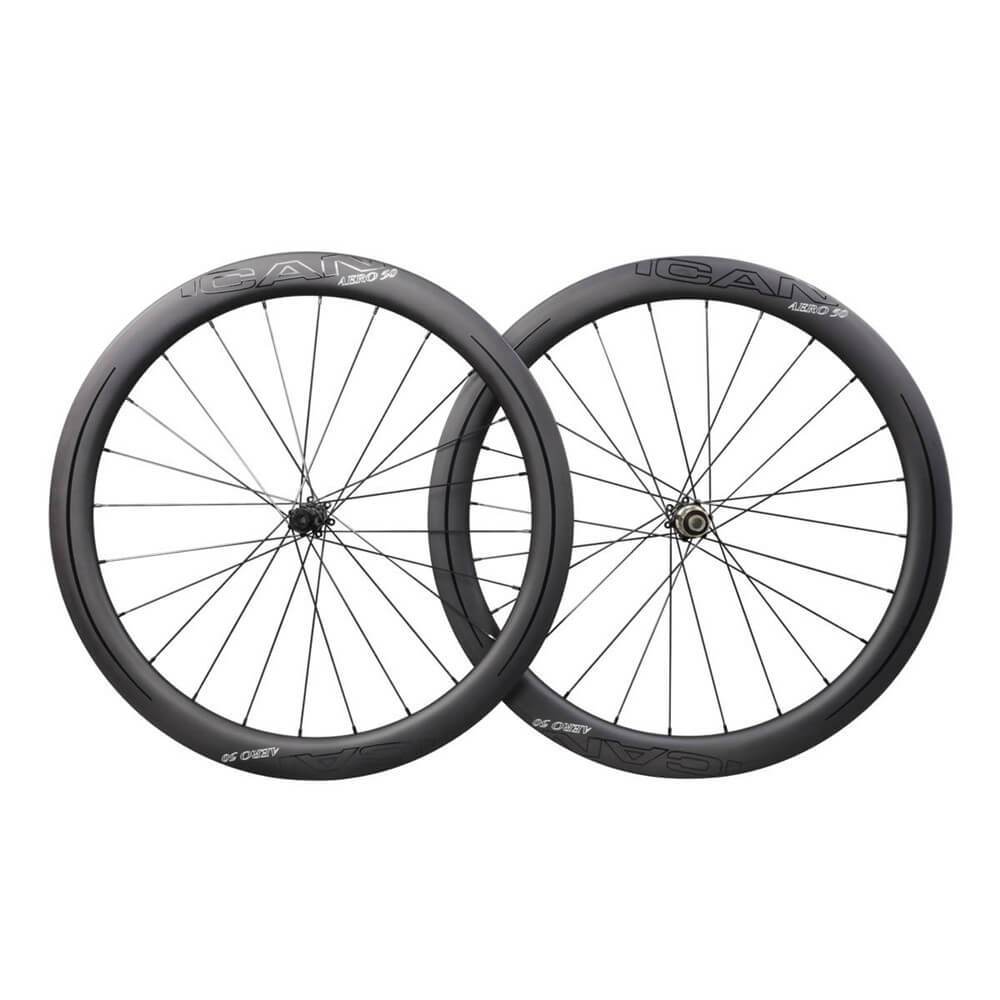

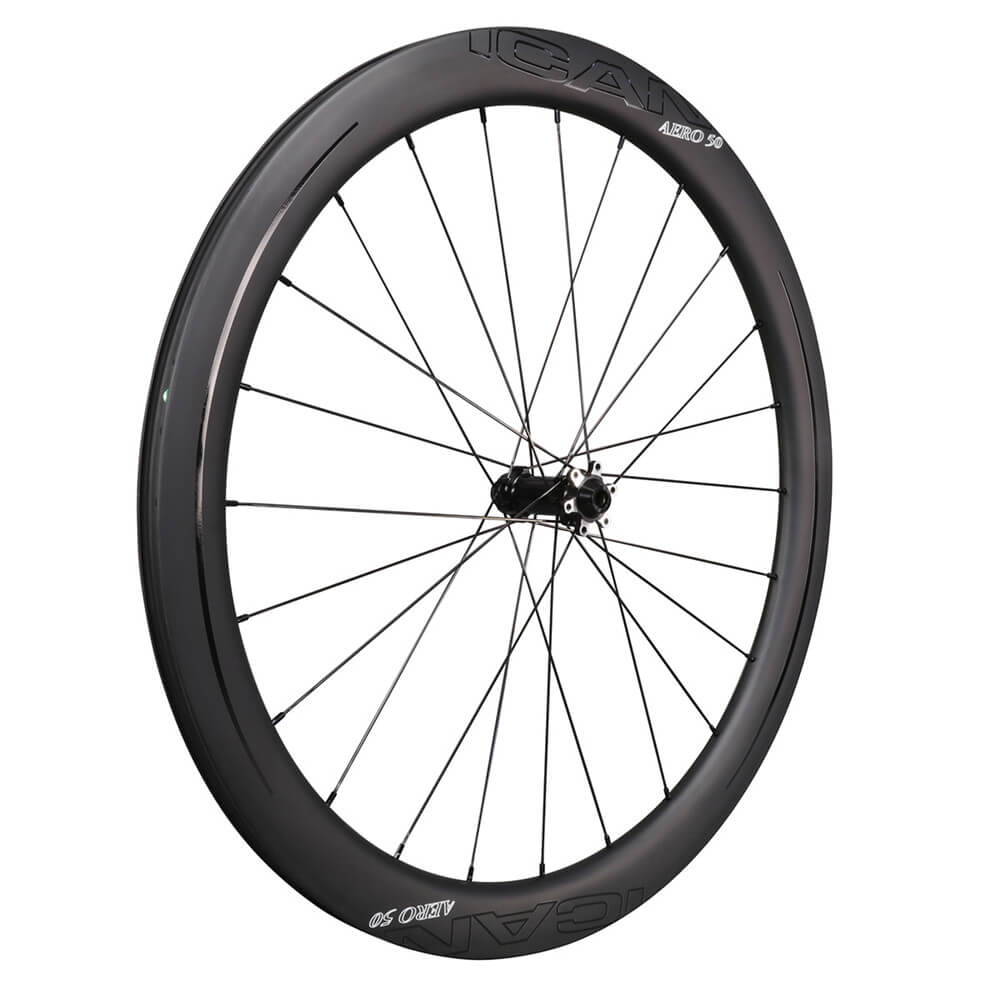

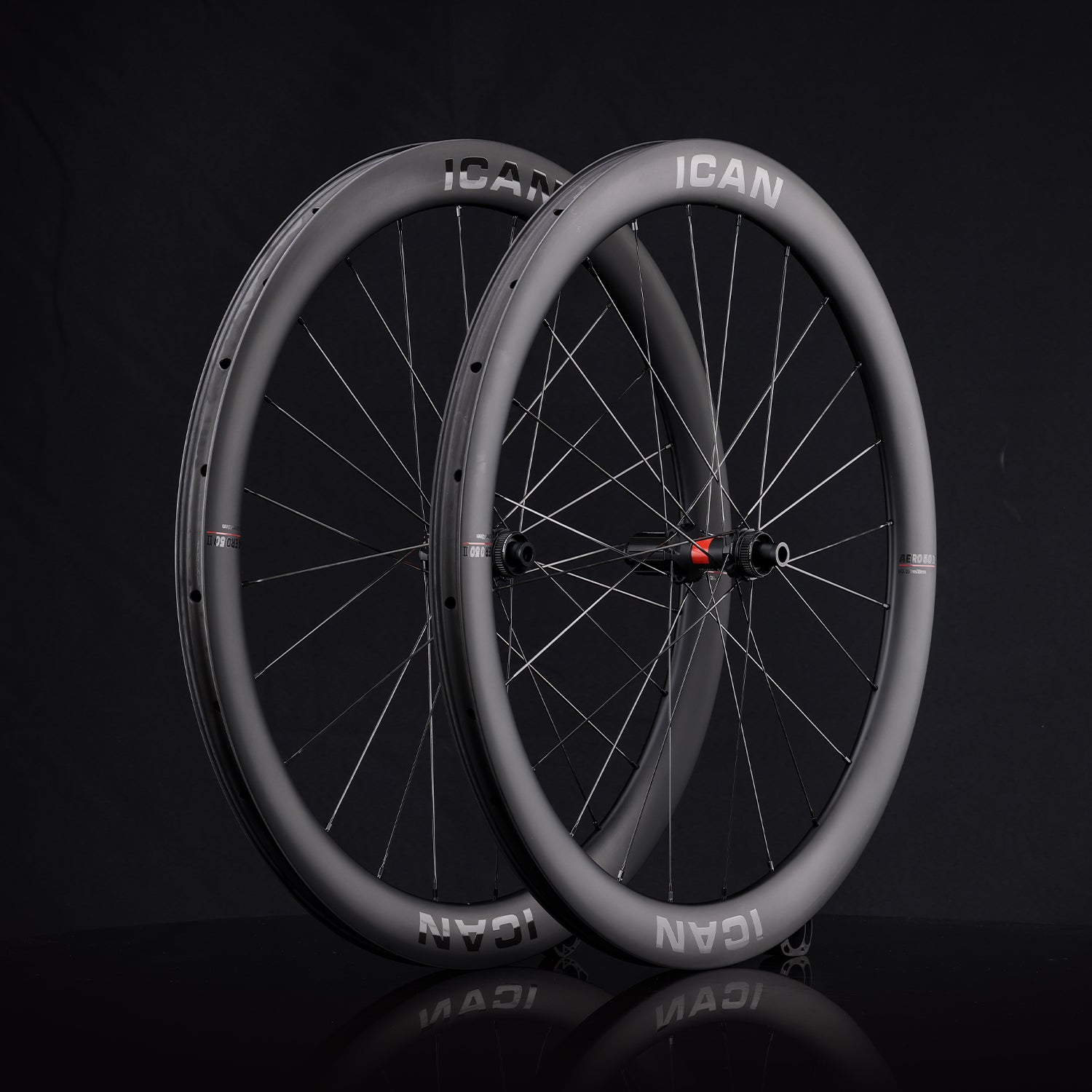

The Aero 50 is a 50mm deep section rim. I’m sure you can see what we did there.

The Aero series is based on our highly successful Fast and Light series., which was a tubeless aero range of wheels constructed using Toray T700 carbon fiber. We designed these wheels to be light, stiff, and strong while being a wide blunt aero shape.

We wanted to keep those features and make the wheels lighter. Our engineers tried out various new layups and in the end designed a new layup using both T700 and T800 carbon fiber. The new layup allowed the wheels to be around 100g per wheelset lighter and still retain their stiffness and strength while still being the same aero shape.

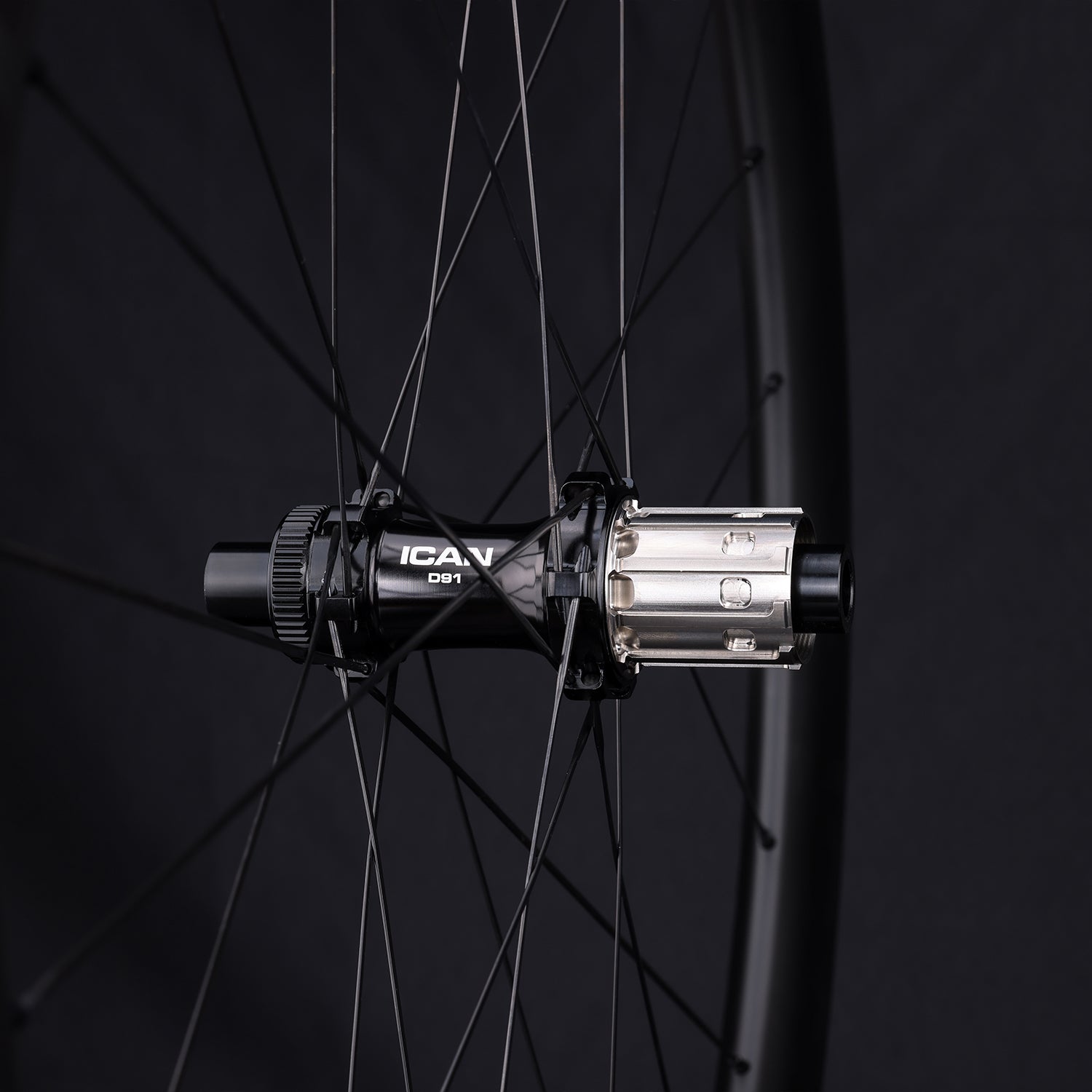

We need an amazing new hubset to go with these wheels. Our engineers came up with the D01 hubset. A sealed bearing hubset that we have made available in both Centrelock and 6-bolt rotor pattern to allow you to fit the rotors of your choice.

To lace our new hubs to our new carbon fiber rim, we picked the best aero spokes available on the market. We choose Sapim CX-Ray spokes. These spokes offer titanium weight but not titanium flex. They lead the way in their combination of weight and stiffness.

To finish off the package we have equipped this wheelset with a two-year warranty to bring you peace of mind.

Features

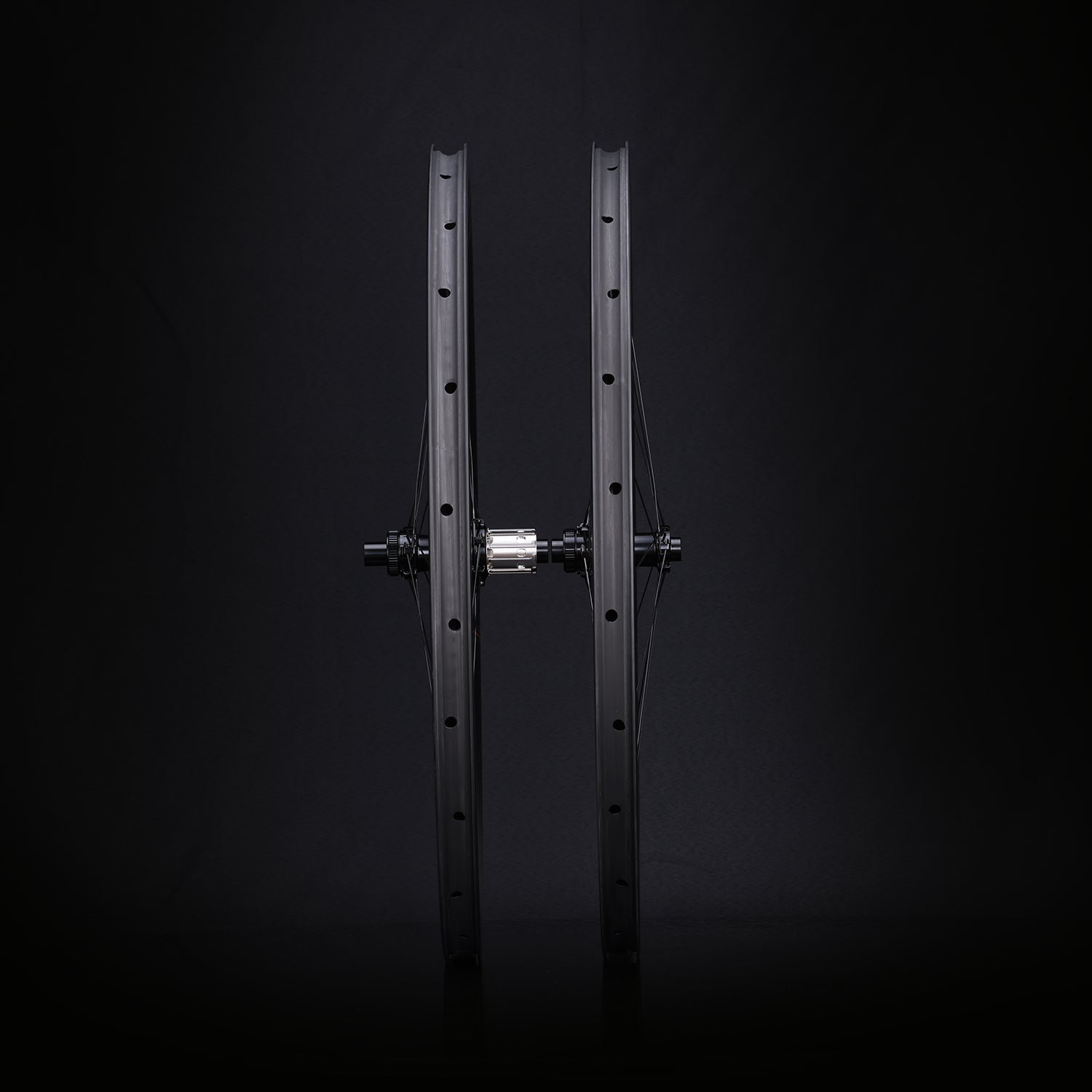

Wide Rim Tech

25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.

2-Way Clincher Tubeless. Tubes or No-Tubes

Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.

Sapim CX-RAY As light as a titanium spoke

The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.



Specification



Type  Carbon Disc Wheelset
Material  Carbon Fiber Toray T700 & T800
Size  700C
Rim

 Drills: 24/24 Holes
 Outer Width: 25mm

 Inner Width: 18.35mm

Depth  50mm
Profile  Clincher Tubuless Ready
Hub

 ICAN D01 / DT240EXP-36T

Centerlock, 12x100/12x142mm

Spoke  Sapim CX-Ray Spokes
Spoke Count  Front: 24   Rear: 24
Spoke Pattern  Front: 2-cross
 Rear: 2-cross
Nipple  Alloy  Color: Black
Cassette Compatibility  Shimano 11 speed
Wheelset Weight

ICAN D01 Total: 1468+-20g  Front: 670+-10g  Rear: 798+-10g

DT240EXP Total: 1506+-20g  Front:688+-10g Rear:818+-10g

Braking Surface  No Braking Surface
Recommended Tyre Size  700 x 25-28mm
Rider Weight Limit  105kg
Guarantee  2 years
Free

Rim Tape

Valves

Packing Size  81.5cm x 17cm x 65.5cm



Recommended Tire Pressure

Below Chart is our recommended tire pressure,you can see more click here

  STANDARD CLINCHER TIRE WITH INNER TUBE TUBELESS TIRES
≤ 65 KG RIDER 23mm - 95/100 psi
25mm - 90/95 psi
28mm - 85/90 psi
23mm - 90/95 psi
25mm - 85/90 psi
28mm - 80/85 psi
65 - 75 KG RIDER 23mm - 100/105 psi
25mm - 95/100 psi
28mm - 90/95 psi
23mm - 90/95 psi
25mm - 85/90 psi
28mm - 85/90 psi
75 - 85 KG RIDER 23mm - 101/106 psi
25mm - 96/101 psi
28mm - 91/96 psi
23mm - 95/98 psi
25mm - 90/95 psi
28mm - 85/90 psi
85 - 95 KG RIDER 23mm - 104/109 psi
25mm - 99/104 psi
28mm - 94/100 psi
23mm - 95/99 psi
25mm - 90/95 psi
28mm - 88/95 psi


IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
